New from NextVein the v800NV is a high-performance digital vein visualisation system. It's a lightweight handheld solution that can be used to quickly assess the patient's vasculature and then convert to hands-free use for performing vein access.

NextVein’s Vein Finder System

Part Number: V800NV

    • Handheld

    • Quickly converts to hands-free

    • Lightweight - only 12oz

    • Excellent vein detection

    • Multi-color projection

    • Advanced digital design

  • Light type Near-Infrared (NIR)

    Infrared wavelength 850nm

    Product size 23cm x 6.4cm x 6.1cm

    Modes:

    A - Projects dark vein image on green background.

    B - Projects green vein image on white background

    C - Projects green vein image on small-sized white background

    Always On Special mode for uses such as cosmetic injectables where the device must stay on for long periods of time.

    Projection colors Green, White

    USB charging USB - C

    Infrared output <=0.6mW/cm2

    Image resolution 854*480 pixels

    Optimal imaging distance 21cm ± 3cm

    Built-in rechargeable battery Yes

    Standby time 4.5h

    Charging time from full discharge 3.5h

    Handheld Yes

    Quick convert to hands-free Yes

    Device weight 340g

    Shipping weight 851g

    • NextVein Projection Vein Finder Device

    • Power Adapter

    • AC Cable

    • User Manual

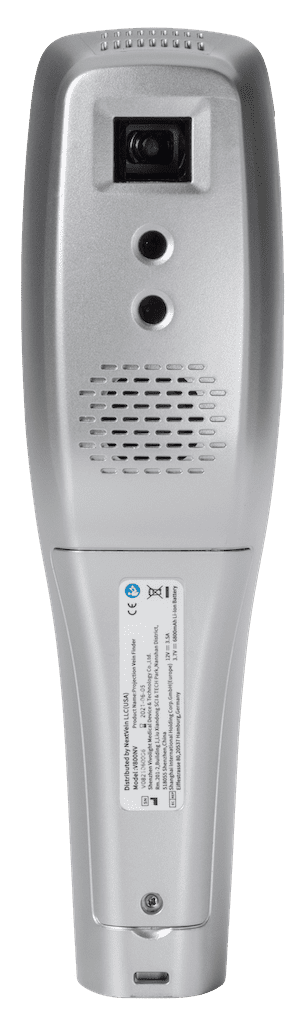

Base of Vein Device | Vein Finder | Next Vein Australia
Top View | Vein Finder | Next Vein Australia
Charging Point | Vein Finder | Next Vein Australia
Side View | Vein Finder | Next Vein Australia

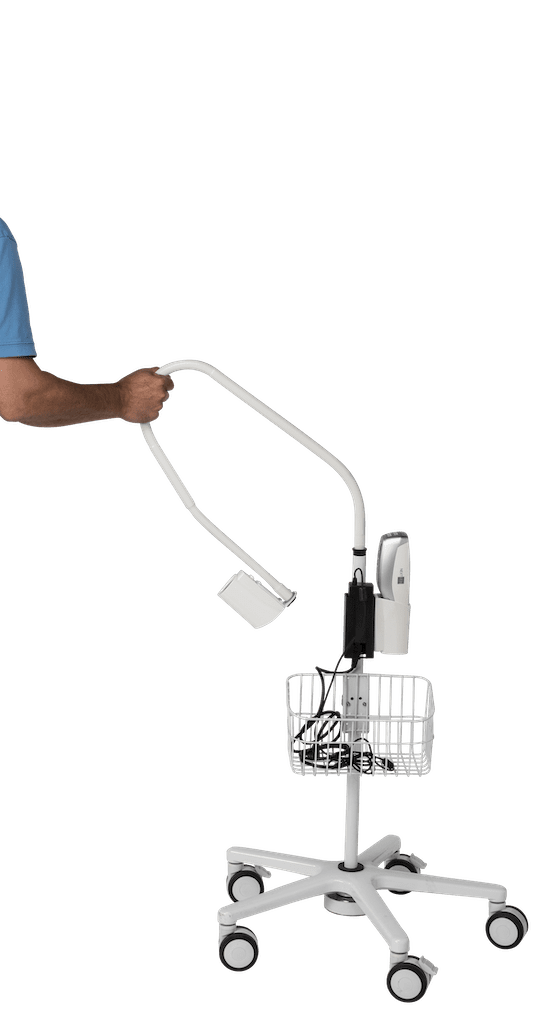

One of the first things a clinician may think when they see hand-held vein visualisation is ‘what do I do with it while I'm starting my procedure?’ The best solution is to have a wheeled stand - like an IV pole - that holds the device once you've completed the hand-held assessment of the patient's vasculature.

NextVein Wheeled Stand

Part Number: S800NV

  • Quick convert from handheld to hands-free? Yes

    Charging In Stand Yes

    Adjustment Mechanism Goose Neck

    Stand Type 5-Wheel with Wheel Locks

    Arm Reach 112cm

    Minimum Height Adjustment 71cm

    Maximum Height Adjustment 163 cm

    Assembled Dimensions 64cm W x 74cm D x 114cm H

    Assembled Weight 7.26 kg

    Number of Boxes 1

    Shipping Dimensions 71cm W x 71cm D x 36cm H

    Shipping Weight 9kg (estimated)

    Tools Needed For Assembly 13mm socket or wrench

    • Stand base (with 5 locking wheels pre-installed

    • Stand pole

    • Gooseneck arm with holder

    • Setup & user manual

vein finder portable | Vein Finder | Next Vein Australia
Handsfree Detail | Vein Finder | Next Vein Australia
Handsfree stand | Vein Finder | Next Vein Australia
